It’s high time for humans to make sustainable life choices. And Australians seem to have taken it seriously, with the EV turning out to be one of Australia’s fastest growing markets. Although you might think that buying the car was the tough part, most homeowners hit a wall trying to set up EV charger installation Sydney without prior research.
In a quick 5-8 minute read, this guide covers:
- What EV charging is
- The types of charging available in Sydney
- What the installation process involves
- The cost breakdown
- Why home charging makes financial sense
- Compliance requirements
For further questions, feel free to reach out to a licensed electrician at Impulse Electrical Enterprises. With over 10 years of experience in electrical installations, we make sure your EV charging setup works perfectly for your home
What is EV Charging?
Just as you would refuel a petrol car, EV charging is the process of recharging an electric vehicle’s battery using an external electricity source. Although you can recharge your car at a public charging station, many people use a home charger since it is easier to top up your battery overnight. In fact, according to EV research in Australia, around 83% of EV owners in Sydney charge their vehicles at home, highlighting how common overnight home charging has become.
Compared to refuelling, which only takes a few minutes, EV charging speed depends on the power output of the charger and the size of the vehicle’s battery. Most modern EVs offer between 300 and 600 km of range on a full charge.
Which Type of EV Charger Do You Need in Sydney?
There are three types of EV charging services in Sydney that go by the terms Level 1, Level 2, and Level 3.
Level 3 DC fast charging is really not applicable to home EV charger installation. These chargers are found at public stations, charging an EV to 80% in 20-45 minutes. A 2025 report by the Electric Vehicle Council states that Sydney has over 357 fast-charging locations across the metro area, with the network growing at 20% every year.
So the choice of a home EV charger revolves around Level 1 and Level 2.
Level 1 vs Level 2: Which EV Charger Do You Need?
A Level 1 charger does what one calls trickle charging via a standard power point. Every EV comes with a Level 1 charger in the boot. This means you won’t need an electrician’s help. It plugs into any standard 240V outlet and delivers 10-15 km of range per hour.
While the installation process is simple, the only catch with Level 1 charging is speed. For a 60-75 kWh battery, a full charge can take 24-36 hours. That works if you drive less than 50 km a day.
Level 2 charging works differently. You’ll need assistance from a licensed electrician in Sydney to set up level 2 EV charging since these dedicated wall chargers run on a separate 240V circuit.
What’s better about Level 2? It’s faster. A wall-mounted unit running on a dedicated 240V circuit delivers 7.4kW (single-phase) to 22kW (three-phase). In other words, a full charge takes place overnight in 8-10 hours.
The Most Popular Choice
When you compare charging overnight to waiting 24–36 hours, the answer becomes pretty clear.
Level 2 charging fits into your routine without forcing you to plan around it. You plug in at night, wake up to a full battery, and get on with your day. No waiting or second-guessing whether you’ve got enough range.
That’s why most people switch to Level 2 once they’ve lived with an EV for a while.
Is EV Charging Too Expensive?
EV charging has an installation cost which is advertised at a starting price of $800-$1200. However, some confusion spreads as this range only applies to a minority of Sydney homes where everything lines up neatly with no upgrades or repairs of switchboards and wiring required.
An all-in range for a majority of Sydney properties is $1,500-$5,000, depending on what the electrician finds when they assess your property. Even though this looks expensive at a first glance, the benefits that come with a home EV charger are long-term.
For a full cost breakdown with suburb-specific factors and rebate information, see EV Charger Installation Cost in Sydney (What You'll Actually Pay in 2026).
Benefits of Home EV Charging Installation
Most Sydney EV owners quickly find that public charging for daily use is both inconvenient and expensive. A properly installed home Level 2 charger solves this. Here's why it's worth the upfront investment:
- Home EV charging has lower running costs. As of April 2026, $1 of electricity takes an EV approximately 45 km compared to $1 of petrol, which gets a conventional car around 5.4 km.
- You can wake up to a full battery. Each morning, you don’t have to worry about finding a public charger or checking whether you can meet your travel needs.
- A home charger linked to a solar system can prioritise charging when your panels are producing excess energy. This makes the daily commute effectively free!
- A compliant, certified home EV charger installation is increasingly viewed as a desirable property feature as EV uptake accelerates, particularly in Sydney's Inner West, Eastern Suburbs, and North Shore markets.
For a step-by-step breakdown of the installation process, see our home EV charger installation Sydney guide on how to install an EV charger at home.
A Quick Home EV Charger Checklist Before You Book an Electrician in Sydney
Before you call an electrician, work through these five points. They'll save you time, money, and mid-project surprises.
- Check your power type first. Three-phase homes can go up to 22 kW. Look at your switchboard. One main switch means single-phase; three means three-phase.
- Choose an OCPP-capable charger if you're in NSW, VIC, QLD or SA. From 2025, chargers above 20 amps single-phase in those states must have demand-response capability, which most 7 kW installs require.
- Assess your electrician’s experience in terms of home EV charger installation in Sydney. Someone who has done many EV installs before will assess your switchboard and cable run more efficiently.
- Don’t attempt a DIY Level 2 installation since it’s illegal. This will void your charger warranty and home insurance.
- If you don’t have a garage or off-street parking, that’s a proper blocker. You might have to opt for public charging networks and workplace charging until infrastructure is available.
Once you’ve covered these points, you’ll be well-prepared for a hassle-free EV charger installation in Sydney.

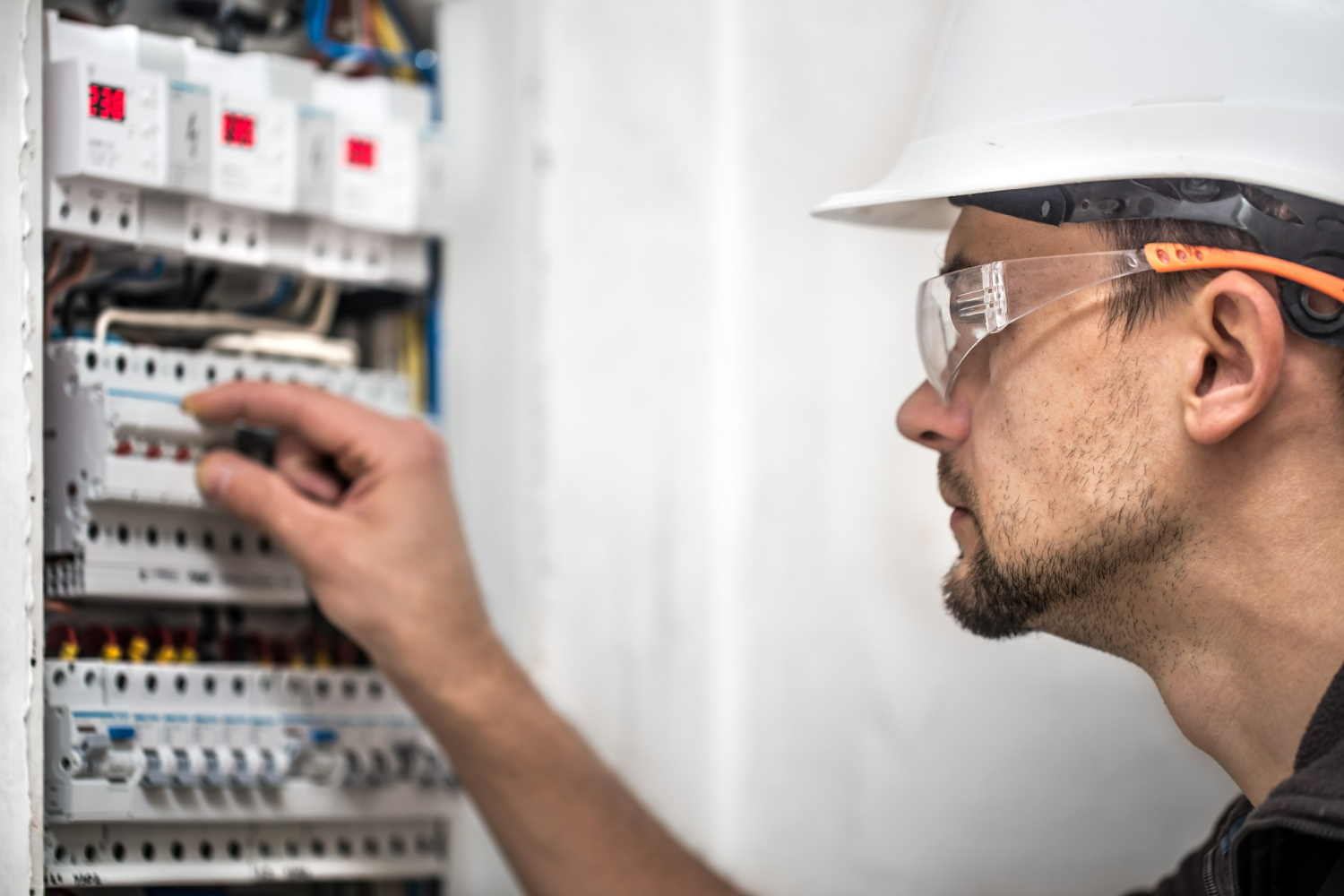

What to Expect From a Compliant Sydney EV Charger Installation
A standard Level 2 installation by a licensed Sydney electrician covers the following:
- a switchboard assessment to confirm capacity
- installation of a dedicated 32-amp circuit
- an RCD (safety switch) — a legal requirement under NSW electrical regulations
- mounting and wiring of the charger unit
- final testing against AS/NZS 3000 wiring standards
- a Certificate of Compliance upon completion
The installation process takes around 2–4 hours if it’s straightforward. It’s the integrations like switchboard upgrades, long cable runs, or solar integration that add time and cost.
If your home has solar panels, confirm your electrician is qualified under the separate AS/NZS 5139 standard before booking since all licensed electricians don’t hold this qualification.
Want a transparent assessment from a team with hands-on EV installation experience? Impulse Electrical Enterprise handles the full process.
Send an enquiry or call us at 0481 228 836 to get a quote now (24/7 availability).
