The electrical switchboard upgrade cost in Sydney starts at $1,200 and can reach $11,000. The price varies across three tiers depending on your board's age, your circuit count, and what you're planning to add.
If you've already been told your switchboard needs upgrading by another electrician or a solar installer, this guide explains exactly what you'll be paying for at each tier. And if you want to understand what separates a compliant job from a cheap one, the section on low quotes covers that too.
When Does Your Switchboard Need Upgrading?
Most people looking up this question online already know the answer. Another electrician or solar installer has flagged the board. But if you're still deciding, these are the signs that move it from optional to urgent:
Ceramic fuses instead of circuit breakers. No RCD safety switches, or fewer than two. Frequent tripping when multiple appliances run at once. Flickering lights when the oven or air conditioning kicks in. A burning smell or scorch marks near the board. A board that hasn't been assessed in over 20 years.
Any one of these is worth getting a licensed electrician to look at. More than one problem means your electrical problem is probably an emergency in the making.

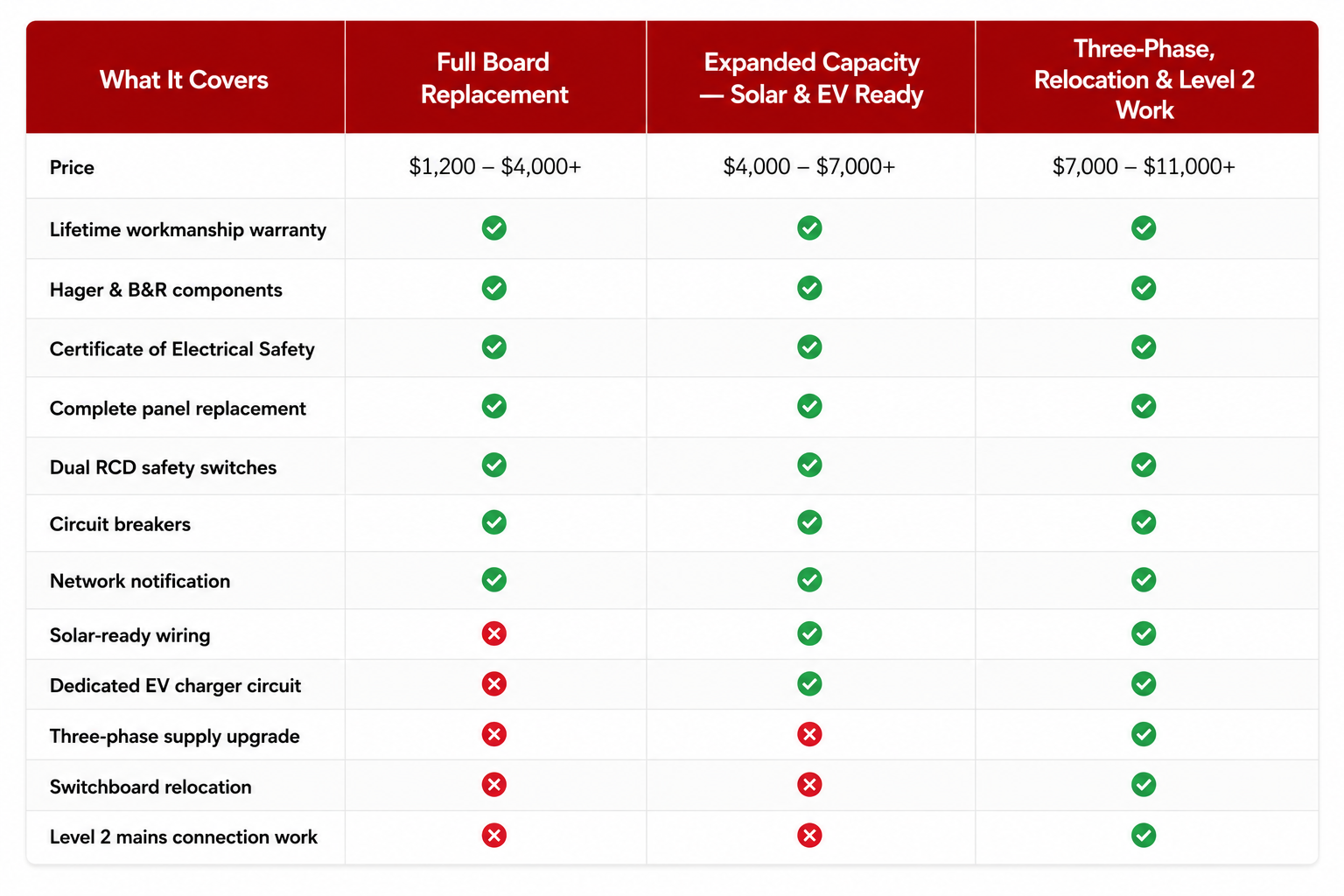

What Should a Switchboard Upgrade Cover?
Although most electricians quote the electrical switchboard upgrade cost, only a few break down what that price buys you. A compliant switchboard upgrade in Sydney should cover all of this:
- Complete panel replacement. Old board out, new compliant board in.
- Dual RCD safety switches on every circuit, as required under AS/NZS 3000:2018.
- Current-rated circuit breakers replacing ceramic fuses or outdated breakers.
- Main cable assessment. The cable from the meter to the board gets inspected on every job. If it needs upgrading, it goes in the quote.
- Network notification to Ausgrid or Endeavour Energy. This is legally required.
- Certificate of Electrical Safety, issued within seven days of completion as required by NSW law.
- Lifetime workmanship warranty on labour, with parts covered under manufacturer warranty.
- Hager protection devices and B&R enclosures as standard.
Whichever tier suits your property, the quality and compliance don't change. Only the scope does.

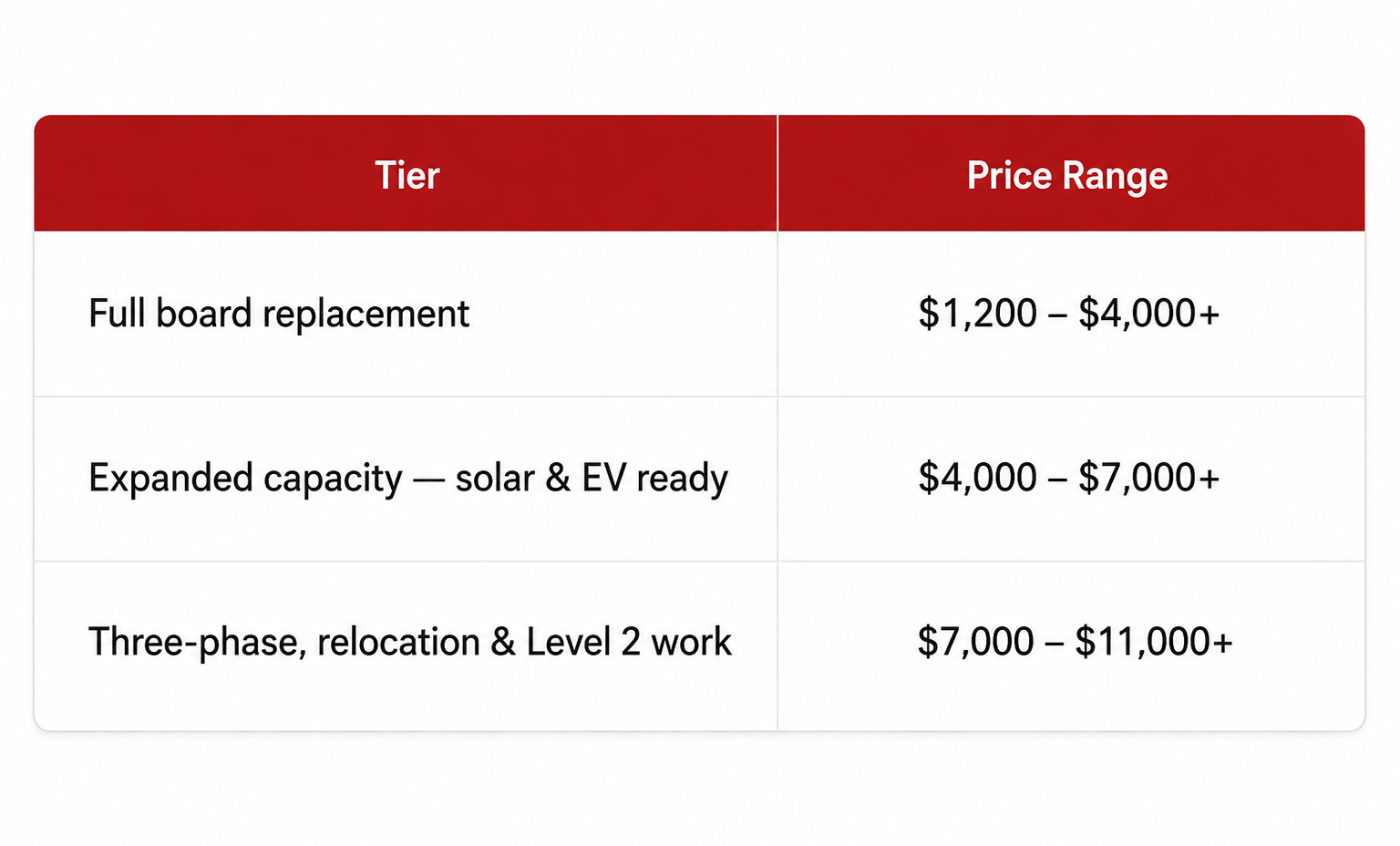

Which Tier Do You Need?
Based on over 30 years of switchboard work across Sydney's Inner West, here is how Impulse Electrical Enterprise structures every quote. You choose what fits your property and your plans with no pressure.
The job that is right for your home depends on the age of your board, your number of circuits, whether you are adding high-demand appliances, and whether the work requires Level 2 access to the mains connection. We assess your property first before determining the electrical switchboard upgrade cost.
What Affects the Cost of an Electrical Switchboard Upgrade in Sydney?
These are the main variables that move a switchboard upgrade up or down in price:
- Number of circuits: A standard Sydney home has 10-16 circuits. More circuits mean more breakers, more RCDs, and more time.
- Single-phase vs. three-phase supply: If your home runs on single-phase, the installation process of the switchboard is less complicated. Three-phase, being more complicated, costs more but is a necessary investment for modern loads.
- Age of existing wiring: Older wiring will need assessment or partial upgrade alongside the board. This is common in homes built before 1980.
- Future proofing requirements: Adding solar, EV charging, or ducted air conditioning circuits on the same visit is more expensive but also more cost-effective than a second callout later.
When Do You Need a Three-Phase Upgrade in Your Switchboard?
As soon as you hear “three-phase”, the cost becomes your main concern. However, a majority of Sydney homeowners don’t need three-phase power unless you are running or planning many high-demand appliances simultaneously.
High-demand appliances would include EV charging, ducted HVAC, large workshop equipment, pool and spa systems. If you run them all at once, single-phase supply can start limiting performance before anything fails.
A three-phase switchboard upgrade in Sydney is handled by a Level 2 accredited electrician and involves coordination with your network provider (Ausgrid or Endeavour Energy). It sits in our top tier: $7,000–$11,000+ depending on scope.
Read the full guide on what a 3 phase switchboard upgrade costs in Sydney and when you need one.
When Does a Switchboard Upgrade Become a Full Replacement?
Switchboard upgrade and switchboard replacement are not the same job, although most electrician websites treat them as if they are.
A partial upgrade adds safety switches or replaces individual breakers. A full replacement removes the entire panel and installs a new compliant board.
Most jobs end up as full replacements even when they start as a quick fix. Under Australia’s mandatory wiring standard AS/NZS 3000:2018 Clause 2.6.3.2.5, once any alteration or replacement work is carried out on a switchboard, RCD protection must be installed on all affected circuits to current standards.
On a ceramic fuse board from the 1970s or 1980s, bringing every circuit up to that requirement is a full replacement job. There is no compliant halfway point.
Read the full guide on what a switchboard replacement in Sydney includes, what it costs, and when a partial fix is actually enough.
What a $900 Switchboard Quote Leaves Out
If you've already got a quote well under $1,200, it's worth knowing what that number probably doesn't cover.
- Certificate of Electrical Safety: This is legally required in NSW for switchboard work. If it's not in the quote, ask why.
- RCD safety switches on all circuits: Current standards require them on every circuit, not just new ones. Some operators quote these as add-ons.
- Network notification to Ausgrid or Endeavour Energy: Required when the upgrade affects your supply connection. It takes time and coordination, which adds to the cost.
- Workmanship warranty: Most budget quotes don't include one in writing. If something fails six months later, that matters.
- Licensed master electrician sign-off: Only a licensed contractor can legally issue the compliance certificate. Without it, the job isn't compliant.
All of this is included in our quote upfront. We'd rather lose a job on price than win one by leaving something out.
Frequently Asked Questions
How long does a switchboard upgrade take? The electrical switchboard upgrade cost covers a job that may take four to six hours for a standard single-phase install. Three-phase upgrades, board relocations, or jobs with asbestos removal can take a full day or require two visits.
Do I need to be home for the quote? Not always. Most jobs can be quoted remotely with photos, a video walkthrough, or a quick phone call. We recommend a site visit for larger or more complex work.
Is the Certificate of Electrical Safety mandatory? Yes. Under the Gas and Electricity (Consumer Safety) Act 2017, all switchboard work in NSW requires a Certificate of Compliance for Electrical Work lodged with NSW Fair Trading within seven days. Without it, related insurance claims can be void.
What brands do you use? Hager protection devices and B&R enclosures as standard.
What warranty do you offer on switchboard upgrades? All labour carries a lifetime workmanship guarantee. Parts are covered under the manufacturer's warranty.
Do you offer free safety inspections? Yes. Complimentary inspections are available for existing customers, and we recommend them for new homeowners, investment properties, and anyone planning a renovation.
Ready to get a clear quote?
Call 0481 228 836 or request a quote online. We'll assess your switchboard (in person or remotely) and present all three tier options for you to decide.
Lifetime workmanship warranty on all labour. Available 24/7 for emergencies with flexible scheduling for planned upgrades.
Serving Sydney's Inner West and surrounding suburbs.
